SOLPERK 10A Solar Charge Controller Waterproof Solar Panel Controller 12V/24V PWM Solar Panel Battery Intelligent Regulator for RV Boat car ，with LED Display

Product Description

*Note:Please strictly follow the steps to connect, so that the controller can automatically recognize the battery voltage.

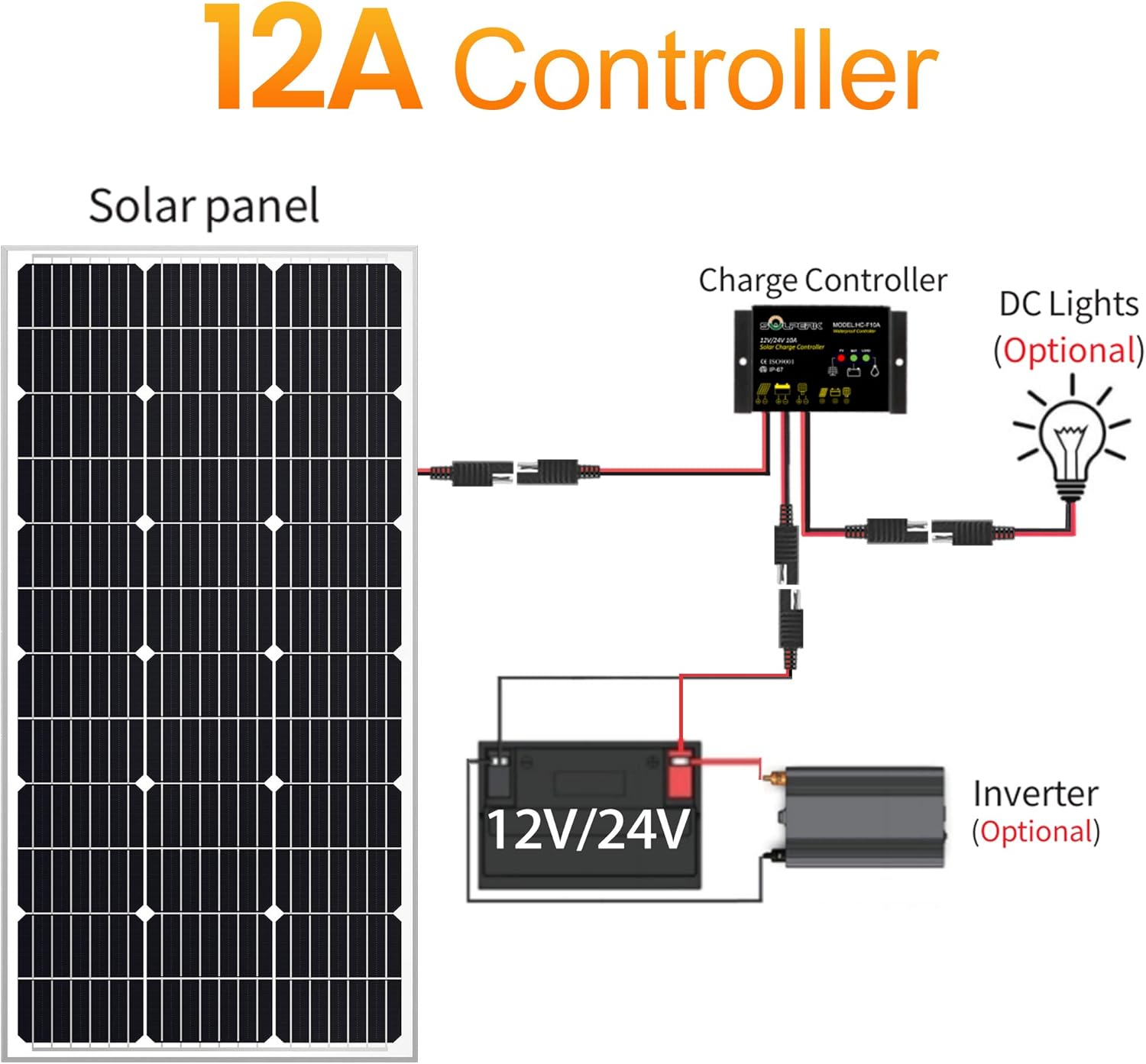

Step 1 (Load Connection) Connect the lights to the charge controller, positive to positibe and negative to negative. Wrong connection will cause short circuit to damage the controller.Step 2 (Battery Connection) Connect the battery to controller first (MUST brfore solar panel), middle light on.Step 3 (Solar Panel Connection) Connect the solar panel to charge conreoller. The solar panel indicator on the conreoller is on.Step 4 (Optional) An inverter can be used to convert the 12V to 120V electricity.Step 5 Remove Removal of the controller is in the reverse order of the installation sequence.

Waterproof LED monitoring Multiple protection Automatic voltage recognition Suitable for 12V/24V solar system Aluminum material, good heat dissipation

The 10A solar charge controller adopts advanced PWM charging function, which can not only extend the life of the battery, but also improve the performance of the system.

Simple operation, easy-to-understand interface design, easy to install.

Understand the current working status through the LED indicator.

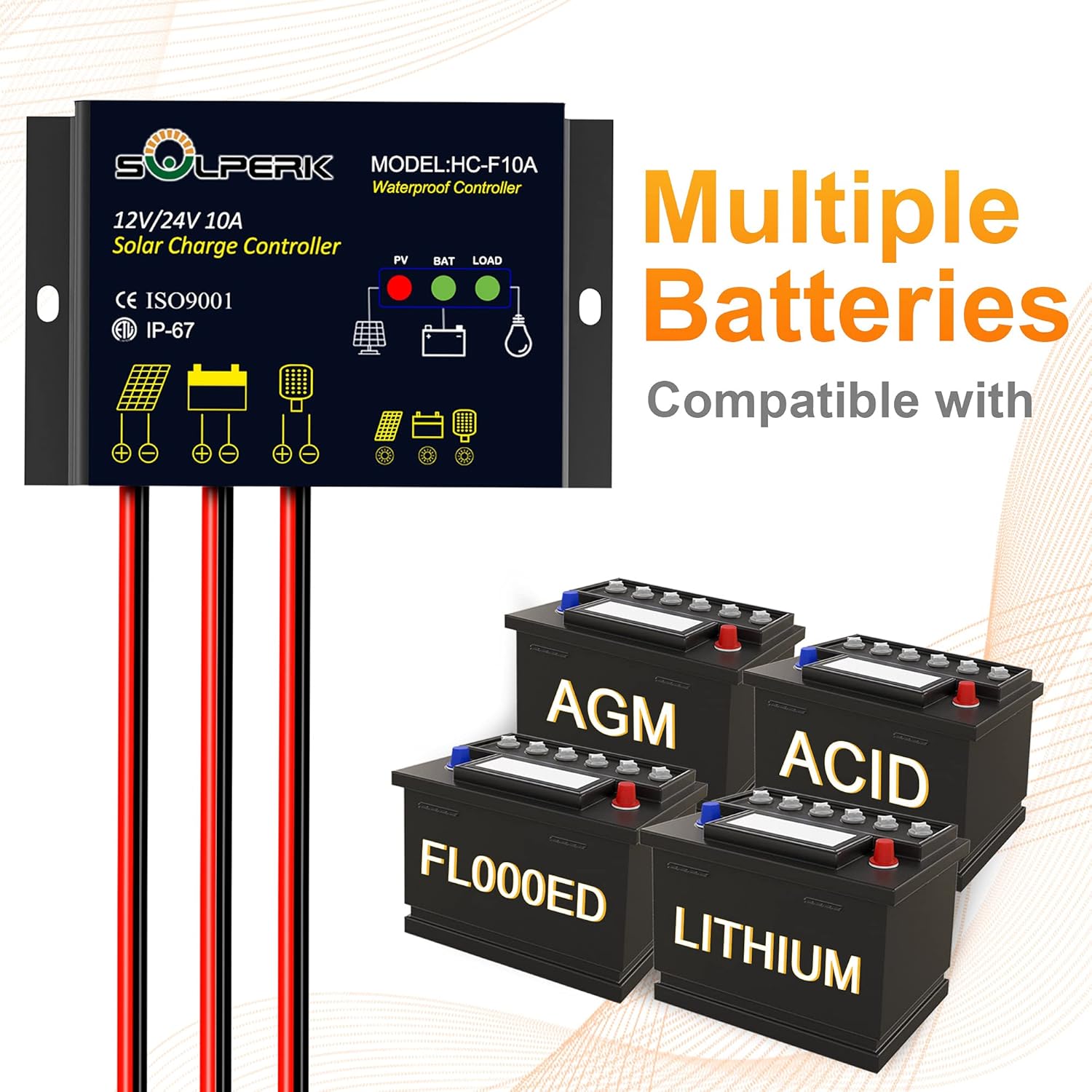

Specially designed for solar energy systems, compatible with a variety of 12V/24V batteries.

Rated Charge Current: 10AMax. PV Input Voltage:150W/12V; 300W/24VWorking Temperature: -31°F-113°FCompatible battery types: Sealed, Gel, Flooded, Lithium

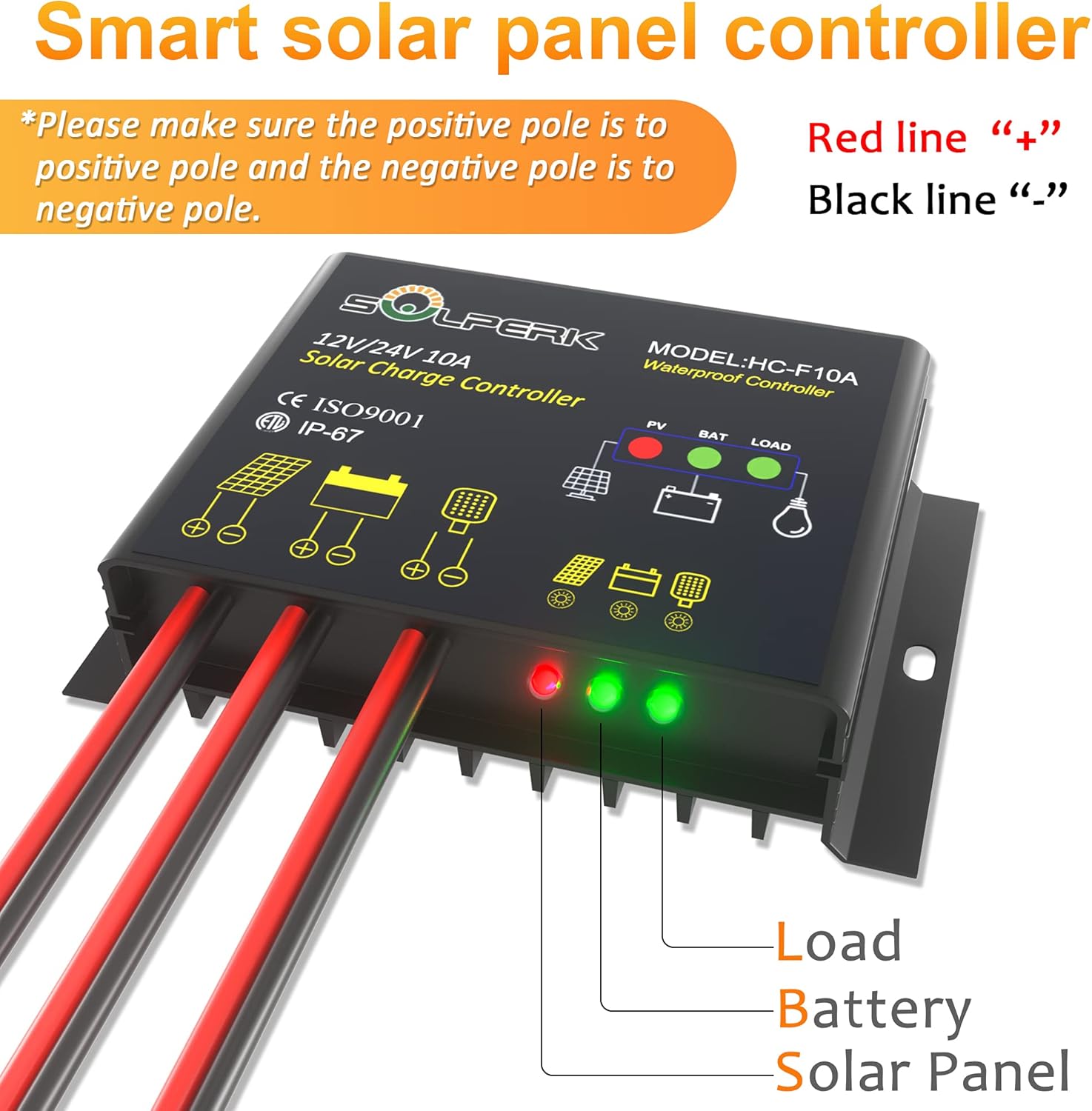

SAE cable, plug and play. easy to use.Note: The red wire is the positive pole and the black wire is the negative pole. Please make sure that the positive pole is to the positive pole and the negative to the negative pole when connecting.

IP67 waterproof solar panel regulator, suitable for outdoor use.You can leave it outdoors.

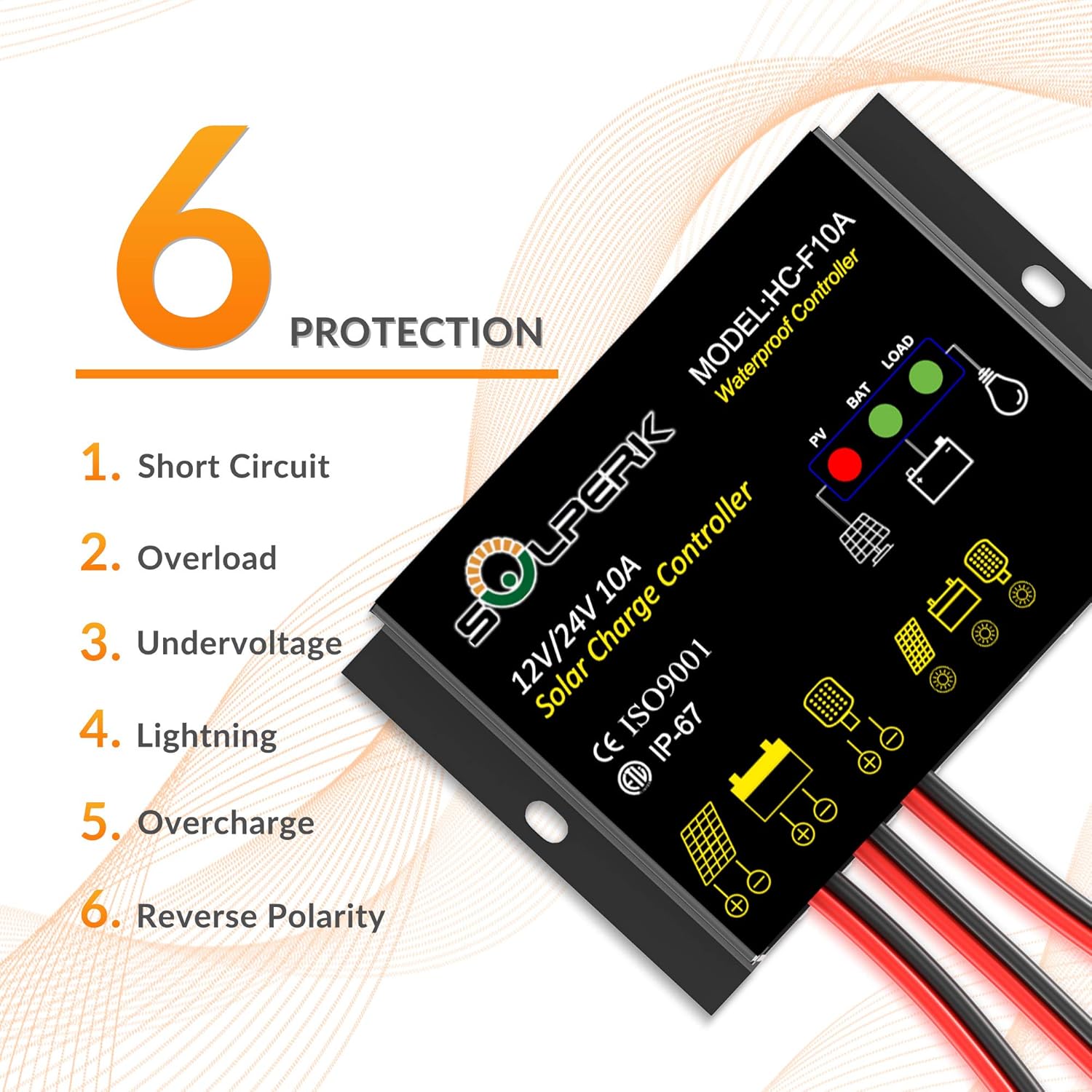

The solar charger controller has multiple protections: Battery under-voltage, over-voltage, output overload, short circuit, battery, solar panel anti -back connect protection.

Intelligent 3-stage PMW charging. .Extend battery life and improve charging efficiency.

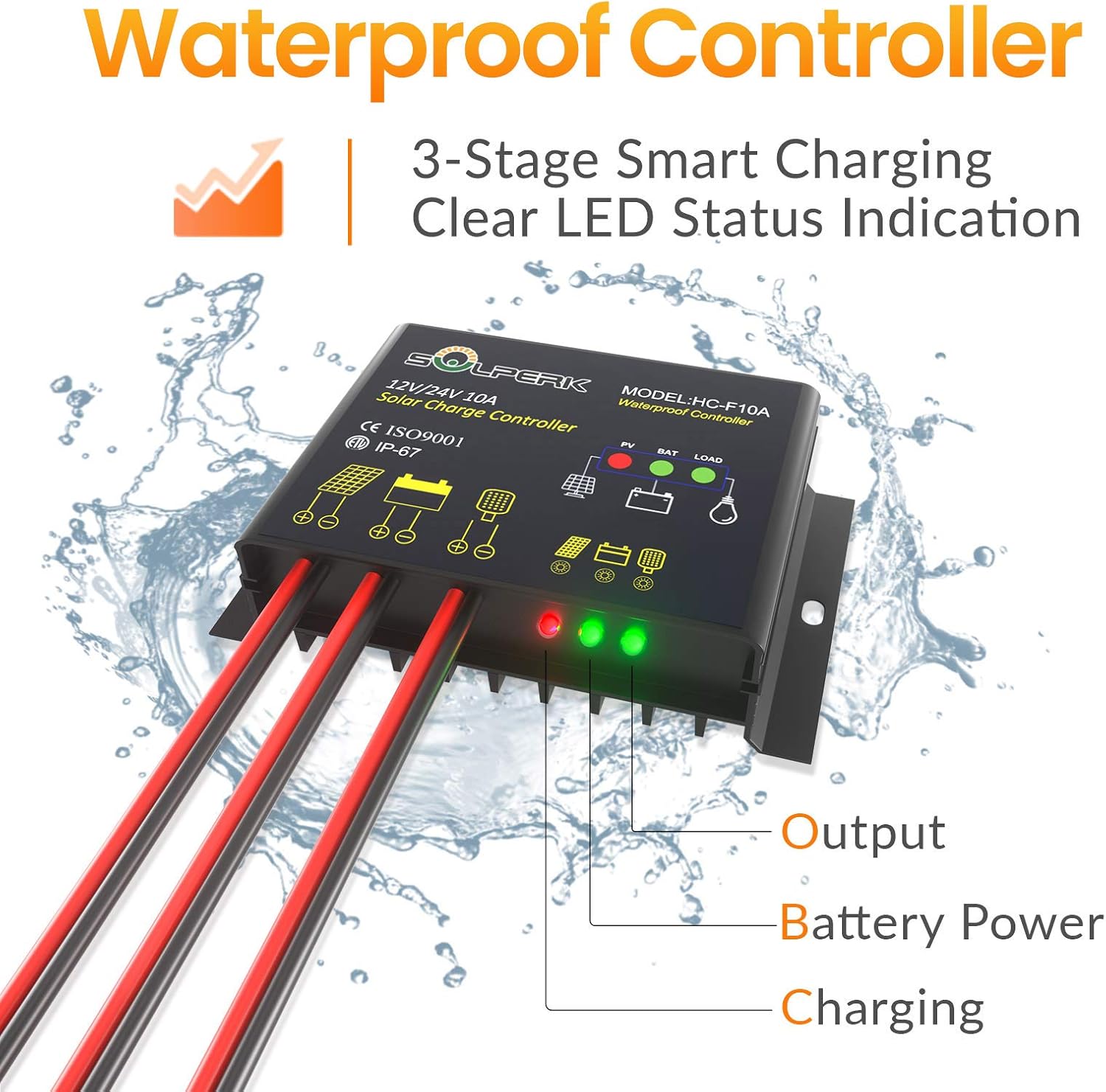

The indicator light of the solar controller is clearly indicated by icons, which is simple and easy to understand.The indicator lights represent the status of these 3 devices: load, battery, solar panel.

Load normal output: green light is always on;Bbattery is normal: green light is always on;Solar panel is charging normally: red light is always on.

Easy to install. The two pre-punched holes can be installed wherever you want.You can adjust the installation location according to your needs.

Add to Cart

Add to Cart

Customer Reviews

4.5 out of 5 stars 390

4.5 out of 5 stars 390

4.5 out of 5 stars 390

4.4 out of 5 stars 31

Price

$108.99$108.99 $89.99$89.99
— no data
— no data

Charger controller

✓

✓

✓

✓

Installation
Bracket Bracket Bracket Bracket

Dimension
21.3*21.3*4.45 inch 21.3*13.6*4.45 inch 14.6*13.2*4.45 inch 41.7*21.3*1.2 in

Solar Cell
Monocrystalline silicon Monocrystalline silicon Monocrystalline silicon Monocrystalline silicon

✔️【Waterproof Solar Charge Controller】IP67 waterproof, suitable for outdoor use. Automatically identify voltage, 12V Max power: 150W, 24V Max power: 300W. The maximum current is 10A. Compatible with various 12V/24V deep-cycle batteries, such as AGM, GEL, Flooded. Adopting brand MCU chips to realize fast intelligent control and ultra-low standby power consumption.
✔️【Intelligent protection】Intelligent 3-stage PMW charging improves charging efficiency. The solar controller not only extends battery life and improves system performance, but also has multiple protection functions: Battery under-voltage, over-voltage, output overload, short circuit, battery, solar panel anti-back connect protection.
✔️【Indicator Monitoring】You can understand its current working status through the three indicators on the solar panel charge controller. Load normal output: green light is always on; battery is normal: green light is always on; solar panel is charging normally: red light is always on.
✔️【Easy to install and operate】The solar panel controller adopts SAE port, plug and play. A manual with clear connection steps is included. There are 2 pre-drilled holes on the controller, you can install it anywhere according to your needs!
✔️【What You Get】1 solar charger controller, 1 manual. Extended 12 months warranty and our 7*24h technical service support. If you have any questions, please contact us directly.
