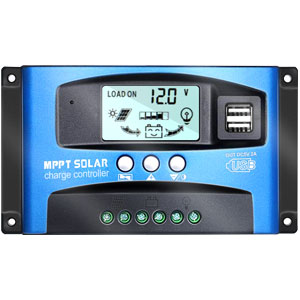

MPPT Solar Charge Controller 100A 12V/24V Auto Solar Panel Intelligent Regulator with Dual USB Port LCD Display for Lead Acid Batteries

Product Description

Make sure your battery has enough voltage for the controller to recognize the type before first installation.The battery cable should be as short as possible to minimize loss.Controller supports Lead-acid(OPEN, AGM, GEL), Lithium LiFePO4, Ternary Lithium batteries.The charge regulator is only suitable for regulating solar modules. never connect another charging source to the charge regulator.

Feature

Built-in industrial micro controllerLarge-screen Lcd display, charging and discharing current display, cumulative power generation and discharge power query, temperature display, light control + delay control; adjustable charge and discharge parameters, with power-off memory and other functionsDual USB output, thr max current of 2.5A, to support mobile phone chargingBuild-in short-circuit protection, open-circuit protection, reverse protection, over-load protectionReverse current protection, low heat prodution

Connect the battery to the charge regulator-plus and minusConnect the load to the charge regulator-plus and minusConnect the photovoltaic module to the regulator-plus and minus

The reverse order applies when deinstalling, an improper sequence order can damage the controller!

Operation instructions:

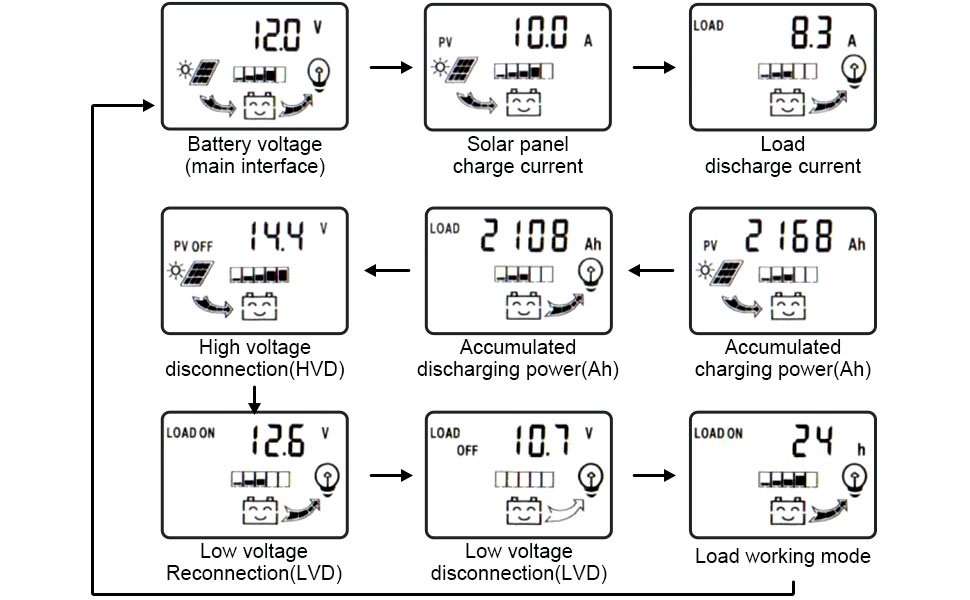

short press menu key to cycle through the interface and parameters;long press the menu button for 3S to enter the settings manually, this number will be flashing, into the corresponding set project on turn, turn key adjustment parameters you want value, after the completion of the system of automatic memory setting value and exut setup menu;

Function declaration:

discharge recovery voltage: refers to the battery discharge protection, the battery voltage to restore voltage, open the output;the diacharge cut-off voltage: refers to the battery diacharge to the voltage when the load off, to protect the battery, to prevent the battery over daicharge damage.Load operstion mode:

[24H]Load output 24hours(except for battery under voltage)

[1-15H]Load on after sunset and closed after setting hours

[0H]Dusk to dawm

Add to Cart

Add to Cart

Add to Cart

Add to Cart

Add to Cart

Customer Reviews

3.9 out of 5 stars 190

3.9 out of 5 stars 190

3.9 out of 5 stars 190

3.9 out of 5 stars 190

3.9 out of 5 stars 190

Price

$20.99$20.99 $21.99$21.99 $22.99$22.99 $23.99$23.99 $29.99$29.99

Battery votage
12V/24V auto 12V/24V auto 12V/24V auto 12V/24V auto 12V/24V auto

Charge current
30A 40A 50A 60A 100A

Discharge current
10A 20A 20A 30A 30A

Max. solar input
12V battery, the highest 23V; 24V battery when the highest 46V 12V battery, the highest 23V; 24V battery when the highest 46V 12V battery, the highest 23V; 24V battery when the highest 46V 12V battery, the highest 23V; 24V battery when the highest 46V 12V battery, the highest 23V; 24V battery when the highest 46V

USB output
2 way USB output, 5V/2.5A(max) 2 way USB output, 5V/2.5A(max) 2 way USB output, 5V/2.5A(max) 2 way USB output, 5V/2.5A(max) 2 way USB output, 5V/2.5A(max)

Self-consume
<10mA <10mA <10mA <10mA <10mA

Operating temperature
-35~+60℃ -35~+60℃ -35~+60℃ -35~+60℃ -35~+60℃

Size
170*92*45mm 170*92*45mm 170*92*45mm 170*92*45mm 170*92*45mm

Weight
450g 450g 450g 450g 450g

Advanced Maximum Power Point Tracking (MPPT) technology, with efficiency no less than 99.5%. High quality components, perfecting system performance, with maximum conversion efficiency of 98%. Ultra-fast tracking speed and guaranteed tracking efficiency.
Large-screen LCD display, charging and discharging current display, cumulative power generation and discharge power query, temperature display, light control + delay control; adjustable charge and discharge parameter, with power-off memory and other functions.
Dual USB output, the maxmum current of 2.5A, to support Apple’s mobile phone charging.
All necessary protections equipped, adjustable controlling parameter of the system, easy to set up and operate.
Build-in short-circuit protection, open-circuit protection, reverse protection, over-load protection. reverse current protection, low heat production, having self-recovering and do not damage the controller.
