LiTime 60 Amp MPPT 12V/24V/48V Solar Charge Controller , DC Input Parameter Adjustable LCD Display & LED Indicators(No Build-in Bluetooth)

Product Description

System Voltage LiFePO4: 12V/24V/48V ；Lead Acid: 12V/24V/36V/48V/Auto Battery Voltage 9V to 60V Max. Solar Input Voltage 150V Max. Power Point Voltage Range Battery Voltage + 3V to 120V Rated Charging Current 60A Rated Load Current 30A Conversion Efficiency 96% MPPT Tracking Efficiency 99% Operating Temperature -4°Fto 122°F/-20°C to 50°C Weight 3.75lb / 1.7 kg Altitude ≤3000m Dimensions With Mounting Part: L7.76*W2.76*H8.66in (197*70*220mm)；Without Mounting Part: L6.57*W2.76*H8.66in (167*70*220mm)

LiTime Battery Accessories

Add to Cart

Add to Cart

Add to Cart

Add to Cart

Customer Reviews

4.4 out of 5 stars 29

4.2 out of 5 stars 163

4.2 out of 5 stars 163

4.3 out of 5 stars 183

Price

$159.99$159.99

$109.99$109.99

$199.99$199.99

$79.99$79.99

Build in Bluetooth

✘

✔

✔

✘

System Voltage

LiFePO4: 12V/24V/48V

12V/24V

12V / 24V / 36V/ 48V

/

Max. Solar Input Voltage

150V

100V

150V

/

Rated Charging Current

60A

30A

60A

/

Rated Load Current

30A

20A

20A

/

Conversion Efficiency

96%

≤97%

≤97%

/

MPPT Tracking Efficiency

99%

99.9%

99.9%

/

Operating Temperature

-4°F to 122°F / -20°C to 50°C

-31°F to 113°F / -35°C to 45°C

-31°F to 113°F / -35°C to 45°C

14°F to 140°F / -10°C to 60°C

Weight

3.75lb / 1.7 kg

4.41lb/2kg

10.03lb /4.55 kg

/

99% Tracking Efficiency: LiTime 60A MPPT has advanced Maximum Power Point Tracking technology. This can continuously track array’s maximum power point, so as to get the maximum amount of power to charge the battery. The tracking efficiency is not less than 99% and peak conversion efficiency is up to 96%.
3 System Voltages to Choose: This MPPT Solar Charge Controller has LiFePO4 Battery Charging Mode, making it easy operation to charge LiFePO4 battery. But it’s also compatible for Lead-acid batteries by adjusting the parameter. LiTime 60A MPPT Solar Charge Controller can provide 12V/24V/48V for LiFePO4 battery and 12V/24V/36V/48V/Auto for Lead Acid battery, thus will meet your different needs.

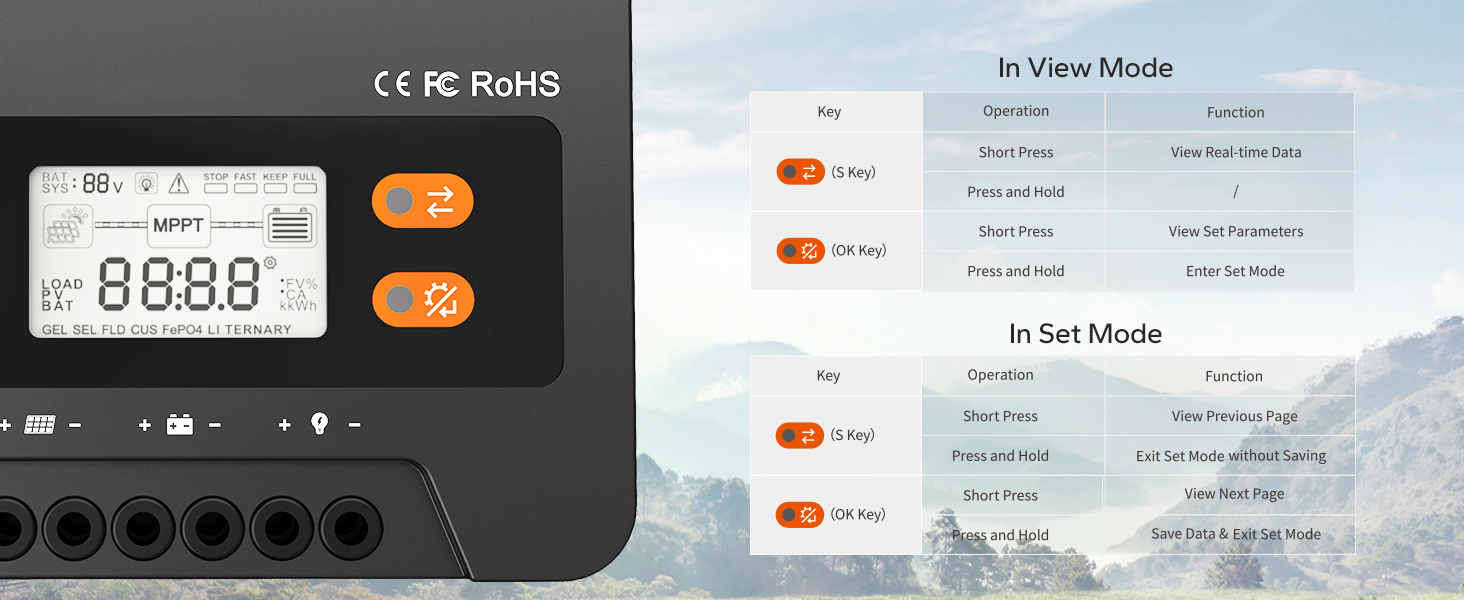

LCD Screen & LED Indicators: LiTime MPPT controller comes equipped with an LCD screen to display the system operation information and 2 buttons to operate the menus. The charge indicator will help you to know the charging status. The Fault indicator will remind you promptly in case of system failure.
Excellent Heat Dissipation & Multiple Protections: LiTime MPPT controller is made of SPCC plate, This material, combined with an internal heat dissipation structure, can better achieve cooling and heat dissipation effects. In addition, the multiple protections built in the solar charge controller can ensure that the controller is completely protected from overpower, over-voltage, short-circuit, over-temperature.
Professional Service Support: We provide professional technical support and customer service as phone support or online services with quick feedback within 24 hours. If you have any questions, please feel free to contact us, we will do our best to meet your needs.

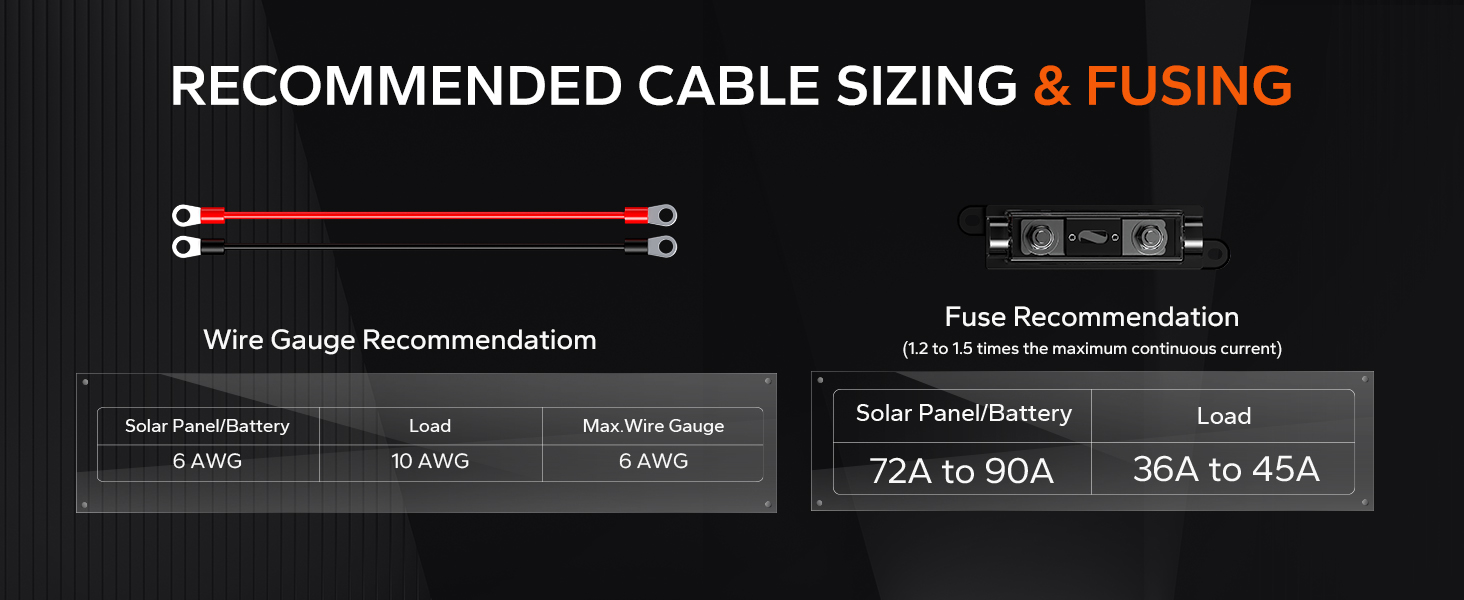

Additional Components: The copper wire connector equipped in the accessory can increase the contact area between the wire and MPPT during installation, increasing the ability to transmit current.
