Jadeshay 30A PWM Solar Charge Controller with Dual USB, LCD Display for DC 12V/24V Batteries, Power-Off Memory, Overheating Overcurrent Short Circuit Open Circuit Protection Auto Recovers

Product Description

Packing List:

1 X Solar Panel Controller

1 X User Manual

Features:

Large-screen LCD display, charge and discharge current display, cumulative power generation and discharge power query, temperature display, light control delay control; adjustable charge and discharge parameters, with functions such as power-off memory.Dual USB output, the maximum current is 2.5A. Equipped with all necessary protection devices, the system control parameters are adjustable for easy setup and operation. Built-in overheating, overcurrent, short circuit, open circuit protection, troubleshooting, the controller automatically recovers.Two-way MOS tube anti-backflow circuit, high-power charging mode, super heat.Built-in short circuit protection, open circuit protection, reverse connection protection, overload protection. Reverse current protection, low heat generation, with self-recovery function, will not damage the controller.Real-time display of temperature, charging current and discharging current. The current auto focus MPPT tracking charging, high charging efficiency, the charging process does not stop detection, two-way focus tracking.

Tips:

12V is suitable for 18V solar panel, 24V is suitable for 36V solar panel

The minute can be adjusted when the output is turned off, which is more convenient.

Photovoltaic System Power Description:

30A battery 12V photovoltaic system: power is 300W respectively

30A battery 24V photovoltaic system: power is 600W respectively

Specifications:

Voltage: DC 12V/24V

Display: LCD screen

Self-consumption: <10MA

Overcharge protection: 14.4V/28.8V

Overcharge floating charge: 13.7V/27.4V

Charging recovery voltage: 12.6V/25.2V

Over discharge protection: 10.7V/21.4V

Over discharge recovery: 12.6V/25.2V

Dual USB output: 5V/2A (charging mobile phones, for iPads, etc.)

Working temperature: -35~60℃(-31~140℉)

Use Parameter Settings:

12.0V lead-acid battery corresponds to:

The float voltage is set to: 13.6

The recovery discharge voltage is set to: 12.6

The discharge cut-off voltage is set to: 10.7

12.8V lithium iron phosphate battery corresponds to:

The float voltage is set to: 14.6

The recovery discharge voltage is set to: 13.6

The discharge cut-off voltage is set to: 11.0

11.1V lithium battery corresponds to:

The float voltage is set to: 12.6

The recovery discharge voltage is set to: 11.6

The discharge cut-off voltage is set to: 9.6

High-Efficiency Charging – Equipped with a large-screen LCD display, this solar controller provides real-time insights into charging, battery, and load statuses. It offers a 3-stage PWM charging system for high efficiency and enhanced battery protection.

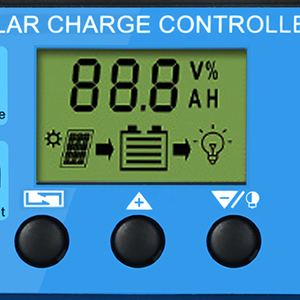

Enhanced Visibility – Equipped with a large LCD display that shows charge and discharge currents, cumulative power stats, temperature, and light-control delay settings. Solar controller offers adjustable parameters and memory retention for consistent performance.

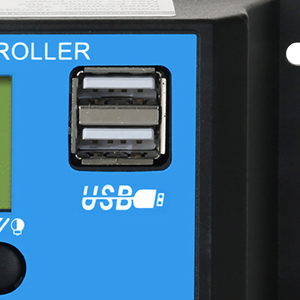

Dual USB Ports – This solar controller features dual USB outputs with a maximum current of 2.5A, providing essential power for your devices. It’s fortified with overheat, overcurrent, short circuit and other safety protections, ensuring reliable and adjustable operations.
Efficient Charging – Benefit from a high-power charging mode powered by a two-way MOS tube anti-backflow circuit, which prevents energy wastage and ensures optimal heat management during operation.
Comprehensive Protection – Built with multiple safeguards such as short circuit, open circuit, reverse connection, and overload protections. These features keep the system running smoothly while minimizing heat production and enabling self-recovery without damaging the solar controller.
