80A Solar Charge Controller 12V 24V 36V 48V Auto, Solar Regulator 80amp Paremeter Adjustable LCD Display with Dual USB fit for Sealed, LiFePO4, Gel, Flooded and Lithium Battery

Product Description

The video showcases the product in use.The video guides you through product setup.The video compares multiple products.The video shows the product being unpacked.

Similar or Related Products

Add to Cart

Add to Cart

Add to Cart

Add to Cart

Add to Cart

Customer Reviews

3.7 out of 5 stars 54

3.4 out of 5 stars 22

4.0 out of 5 stars 119

—

—

4.8 out of 5 stars 1,078

4.8 out of 5 stars 74

Price

$607.99$607.99

$1,559.99$1,559.99

$119.99$119.99

$51.99$51.99

—

$65.99$65.99

—

Output Voltage

110V±5% AC

110V±5% AC

12V or 24V

12V or 24V

12V or 24V

———

———

Max.PV Input Power

5500W

11000W

2880W in 48V Battery

720W in 24V Battery

1440W in 24V Battery

———

———

Built-in MPPT controller

80A MPPT Controller

2x100A MPPT Controller

60A MPPT Controller

———

———

———

———

Length

———

———

———

———

———

10-100 Feet

1/2/10/20 Feet

Fit for Lead-acid, Li Battery

✔

✔

✔

✔

✔

✔

✔

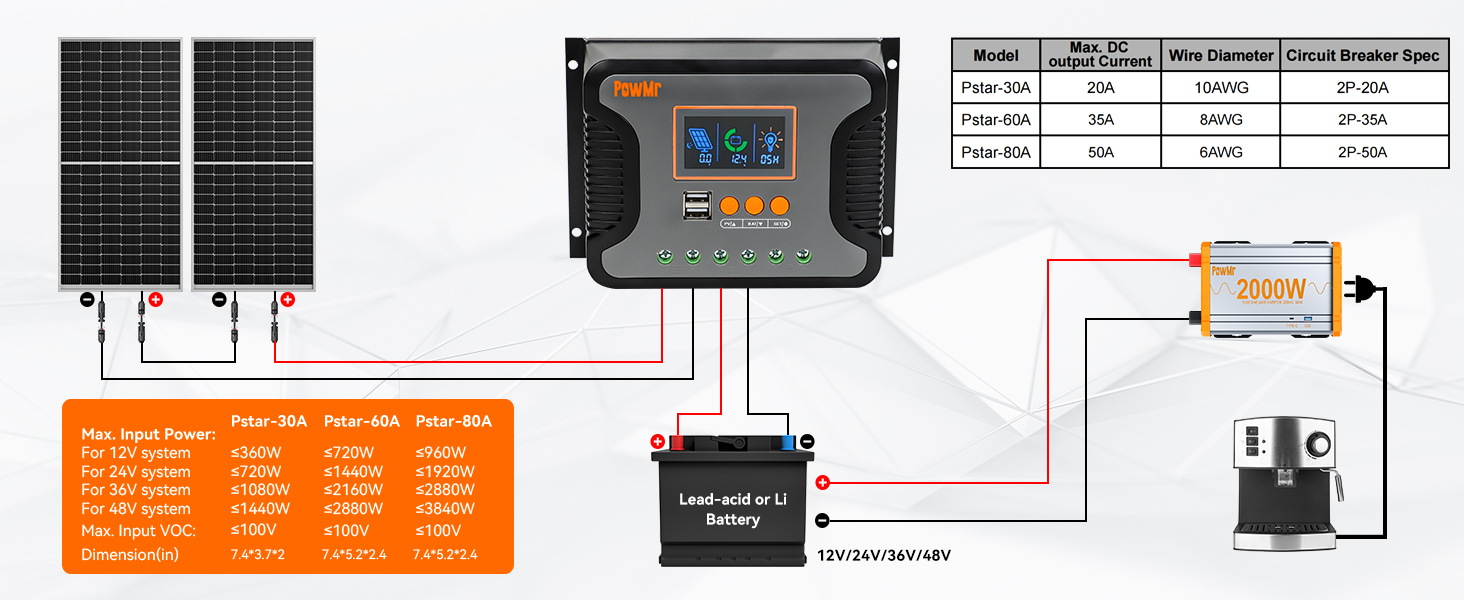

TECHNICAL SPECIFICATIONS: 80A Solar Charge Controller: Auto detects 12V 24V 36V 48V DC systems voltage. Max.PV input open circuit voltage : 100V. Max.PV Input Power: 960W @12V battery; 1920W @24V battery; 2880W @36V battery; 3840@48V battery. Built-in Dual USB output 5V/2.5A (max), charging for your mobile phone, tablet, Small fan

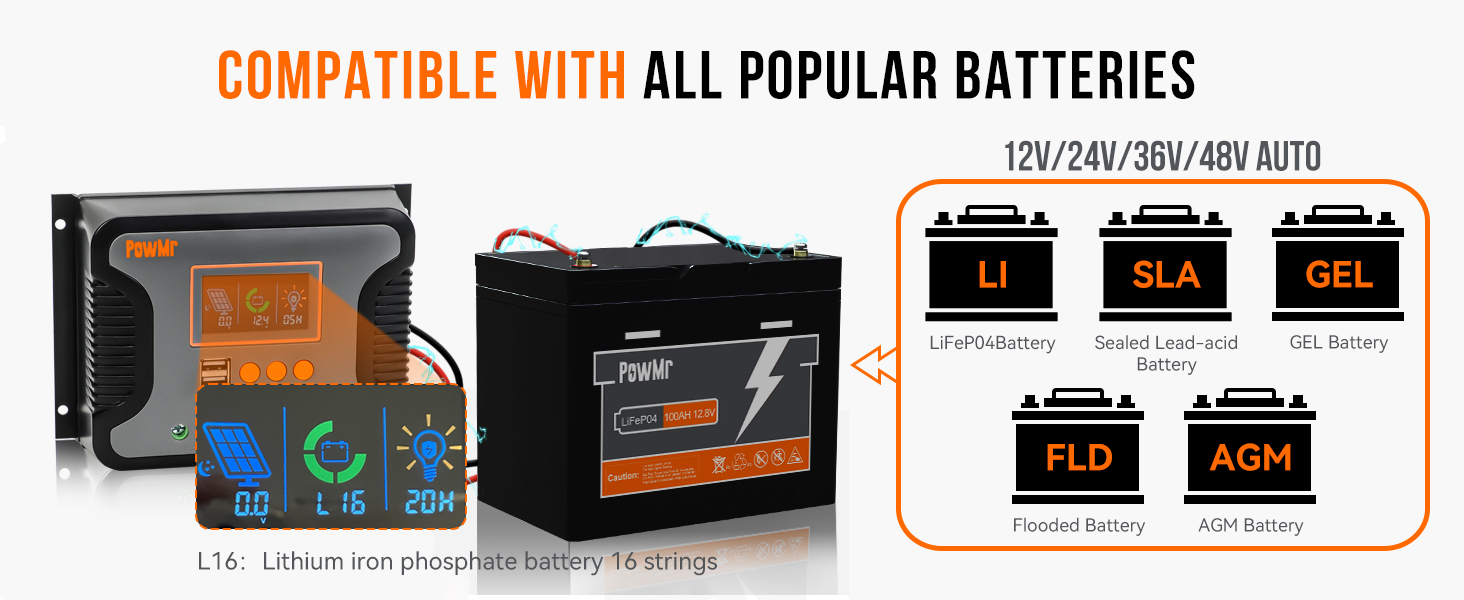

COMPATIBLE BATTERY TYPE: 80 amp solar controller compatible with various 12V/24V/36V/48v lithium-ion and lead-acid batteries, such as SEL, USE, FLD, GEL, LiFePO4, and ternary lithium batteries; type; support user-defined batteries and easy select battery, and can calibrate battery voltage

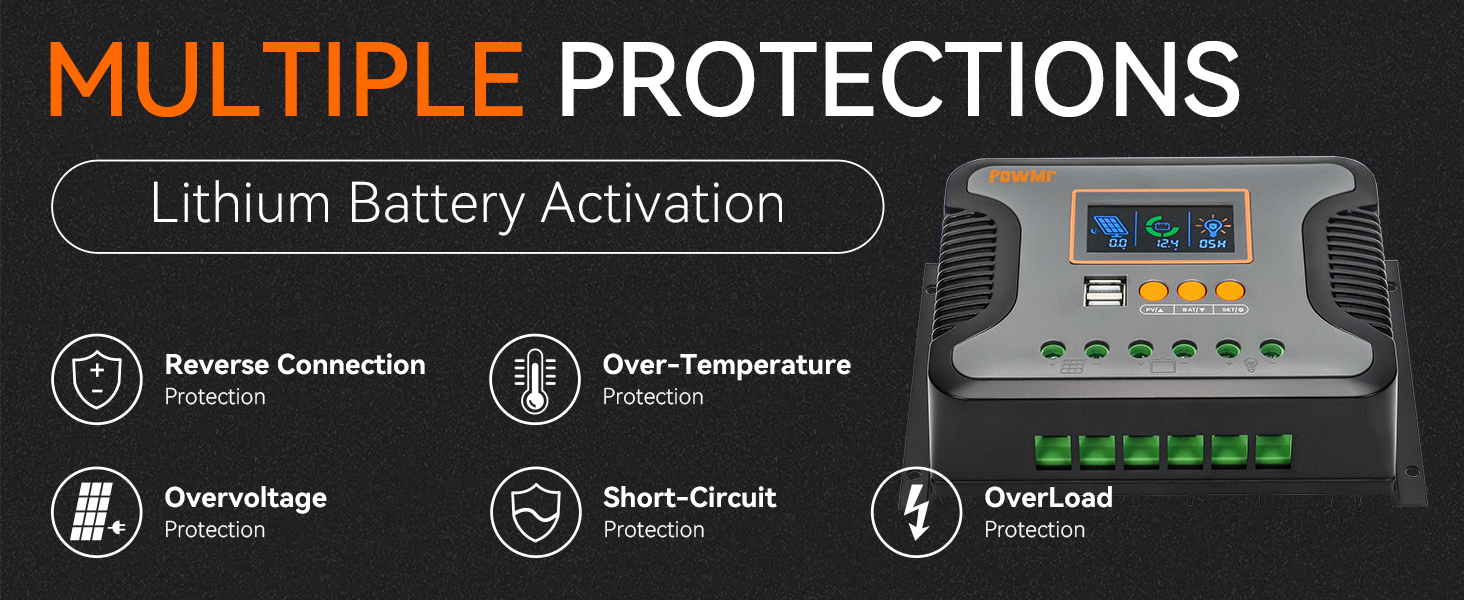

MULTIPLE PROTECTIONS: Equipped against overheating, automatically stops charging, output short circuits. against over-discharging, reverse polarity connection, and Limit the maximum charging current protection, ensuring safety to use; natural convection, cool air heat dissipation, and complete silence

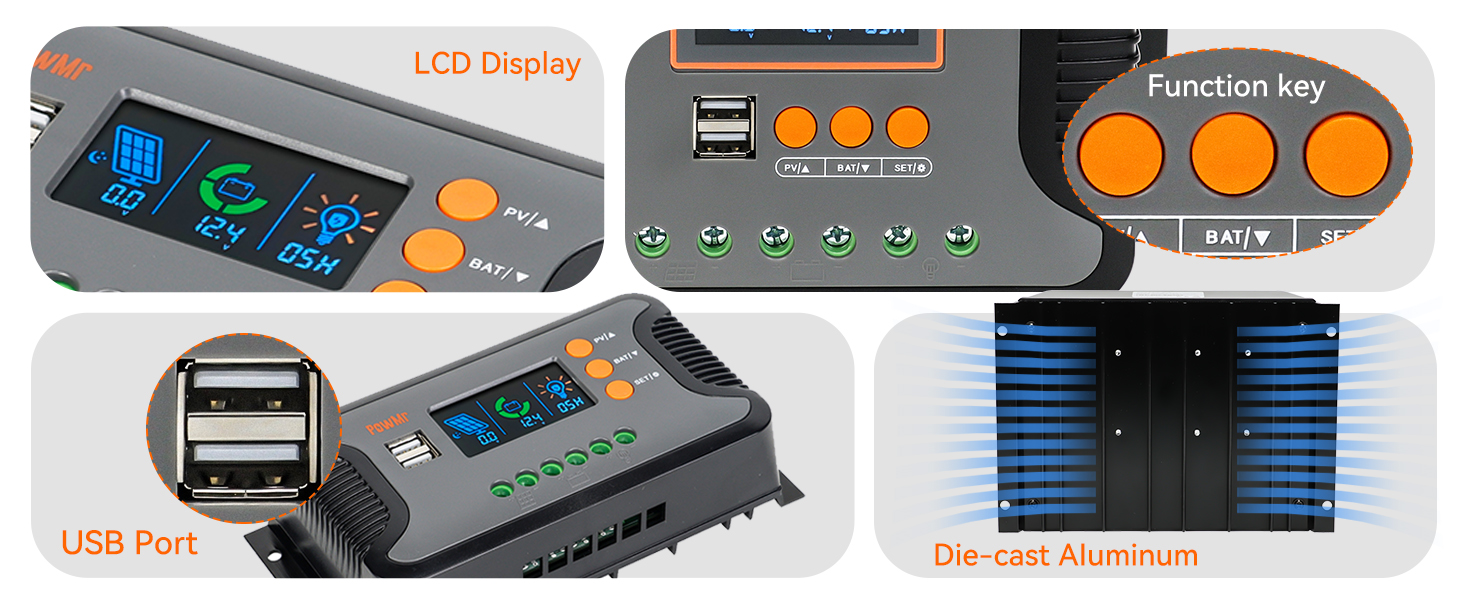

EASY TO USE: Solar regulator real-time monitor, and control charging: charging current, generated energy, temperature, battery voltage, and error codes, fast and easily set and commit parameters; No matter how users switch display screen, it will automatically return to default display screen after no button is pressed for 100 seconds
3-STAGE INTELLIGENT PWM Technology: The solar controller is equipped with advanced smart PWM technology with high charging efficiency, through three stages of charge modes, efficient, and safe battery charge, effectively extending the battery life; a combination of solar light control and time control, freely adjust the load enable duration. such as: Light control, Light Time control
