60A MPPT Solar Charge Controller 12V24V48V Auto Battery Regulator Solar Panel Max 150V Input for Lithium, Sealed, Gel, and Flooded Batteries (Blue)

Product Description

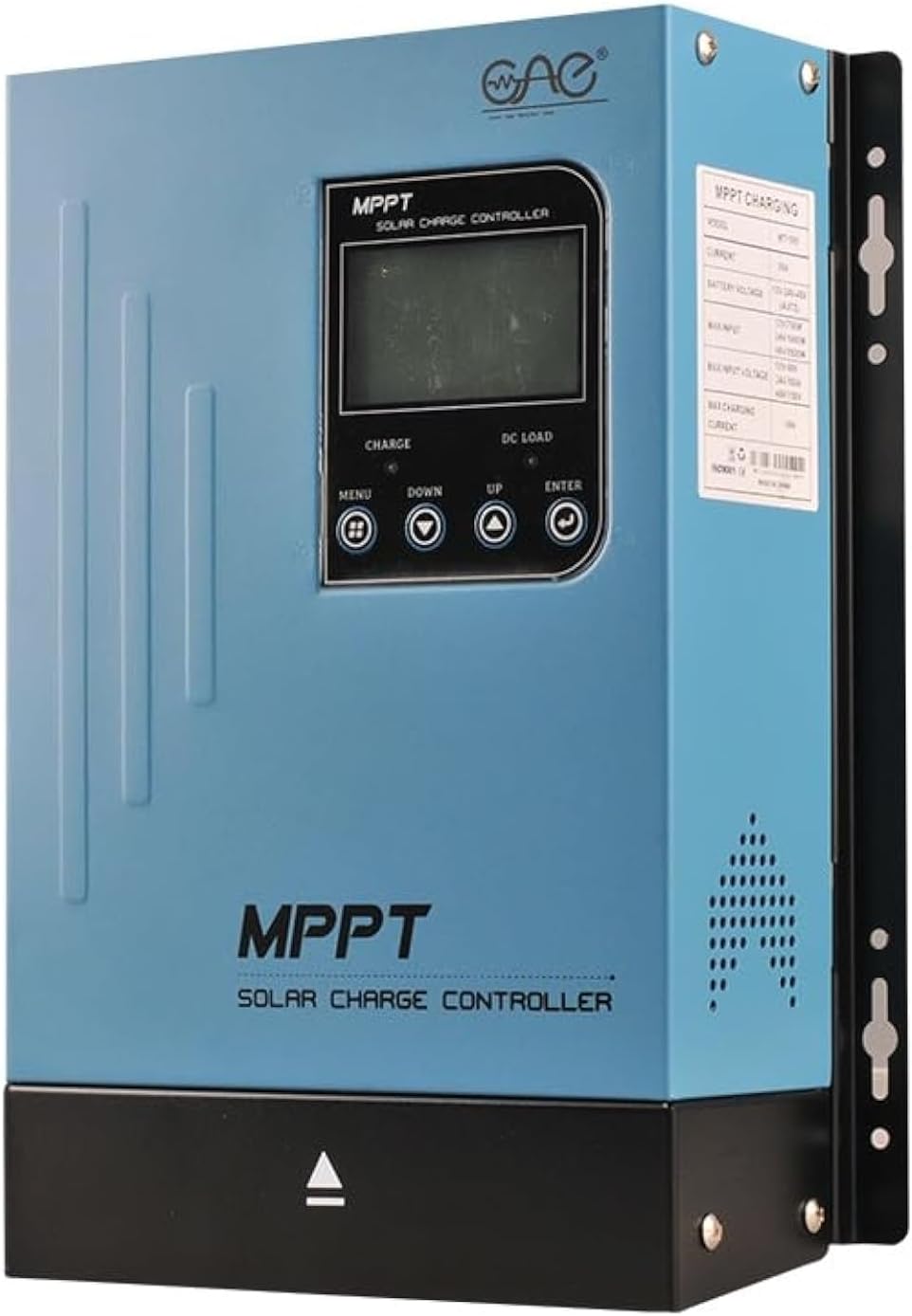

OAE 60A MPPT Solar Charge Controller with LCD Display

Color: Yellow / BlueRated Solar Charge Current: 60AAuto 12/24/36/48V battery system150Voc max PV input voltageSolar panel: suitable for 900W (12V); 1700W (24V); 2700W (36V); 3400W (48V);RS485 communication: Capable of Wi-Fi remote monitoring (Additional purchase required) – Realize real-time wireless monitoring function of solar controller by APP, Simple and convenient to set, One-key restore the factory settings. Suitable for Andriod & IOS system.

–

MPPT Range Operating Voltage:

12V: 18VDC – 80VDC 24V: 30VDC – 100VDC 36V: 40VDC – 100VDC 48V: 60VDC – 150VDC

• Battery temperature compensation function

• Compatible with sealed, gel, flooded, and lithium batteries

• Multiple protections: overcharge/over discharge/ overheat/reverse/overload/short-circuit protection

–

Package Included:

1 x 60A MPPT Solar Charge Controller 1 x Temperature Sensor 1 x User Manual

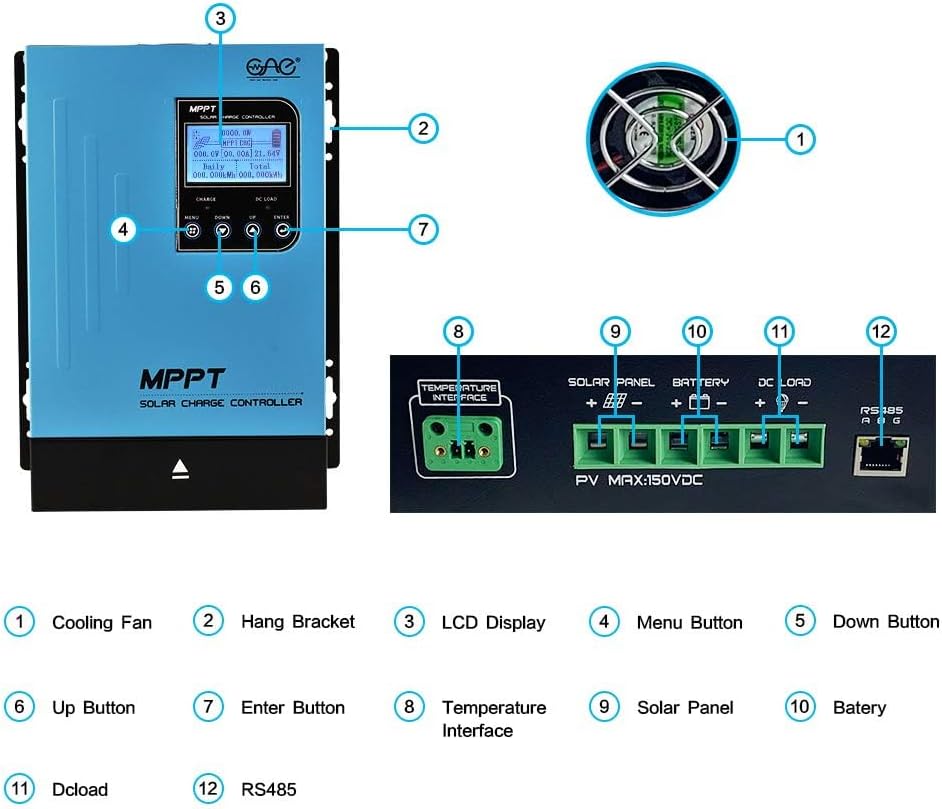

LCD&LED Display

Easy operation, details data display in real-time,

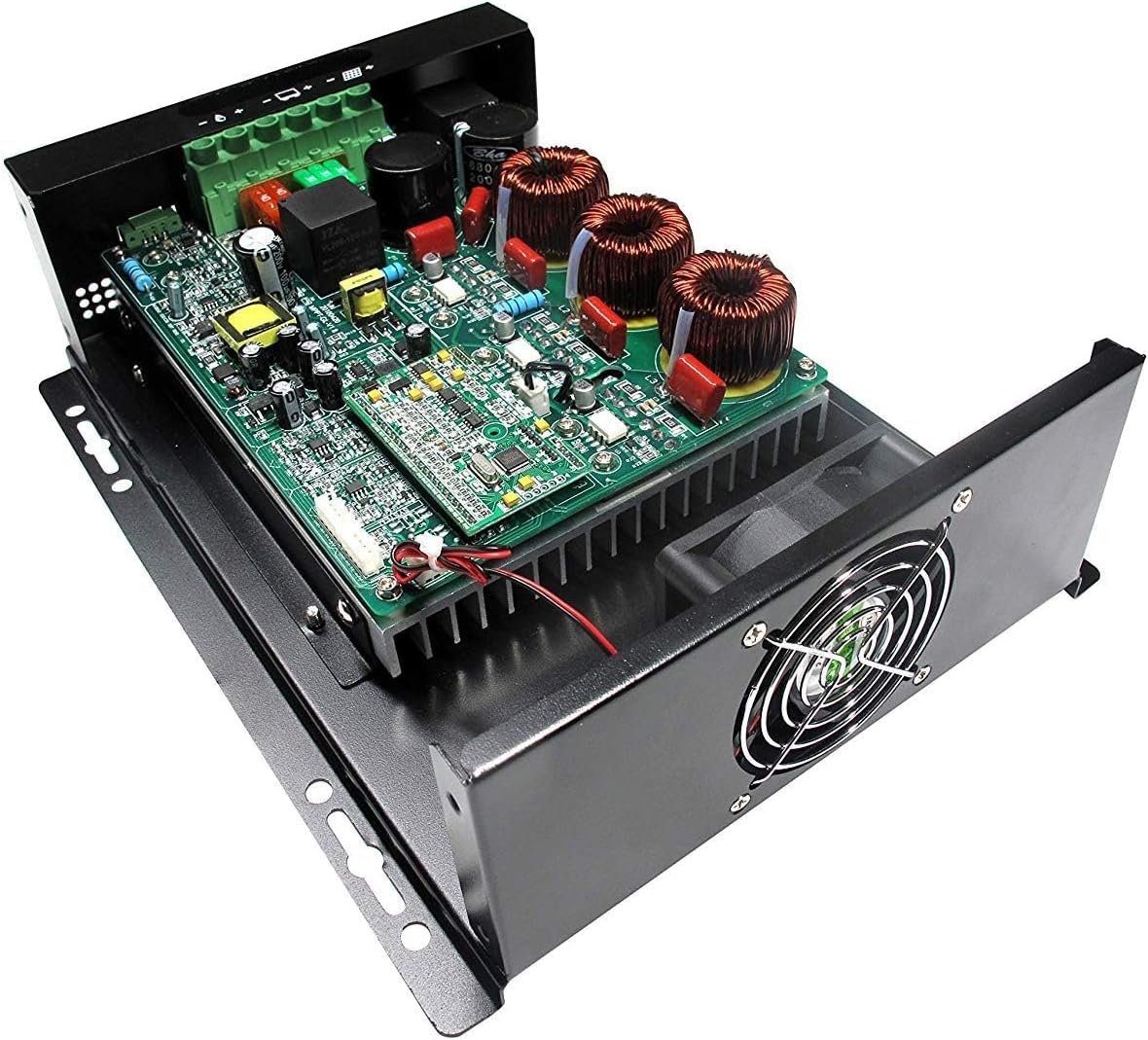

Intelligent cooling fan

Inbuilt real-time temperature monitor, <42℃C slow fan, >45℃C fast fan, protect inverter from overheat.

Fashion air hole design

Big enough for air to go in, but small enough to protect inverter from dust

Attention:

Always connect battery first !! Make sure enough batteries’ voltage let controller recognize the right system voltage. NEVER connect the solar panel array to the controller without a battery. The disassembly sequence is contrary to the wiring order.DO NOT connect any Inverter/ wind/ Alternator or Charger into the charge controller !! Please connect the Inverter directly to the battery.Ensure solar input voltage higher 3V or more than batteries’ voltage and total input power in the range. If input power is too low for max input power, it may be appears to have been discontinued, the charging current almost be zero when controller is floating charge.The charging indicator is on and off, and the charging current is off and on. This situation generally occurs on cloudy days or in the evening when the light is insufficient, which is a normal phenomenon.When the controller is buzzing, it is because the fan is trying to dissipate heat. Please wait patiently.DO NOT install the charging controller in direct sunlight to avoid power loss due to overheating. Remove all clutter around the controller to reduce interference and make sure there is enough space for heat dissipation. ( leaving a space of approx. 20cm )Ensure all connections going into and from the controller are tight. DO NOT let the positive (+) and negative (-) terminals of the battery touch each other.

Add to Cart

Add to Cart

Customer Reviews

4.2 out of 5 stars 131

4.2 out of 5 stars 131

Price

$149.00$149.00 $149.00$149.00

Battery System Voltage
12/24/36/48V auto 12/24/36/48V auto

Max PV Input Voltage
150V 150V

Connection Terminal
6AWG 6AWG

LCD Display

✓

✓

RS485

✓

✓

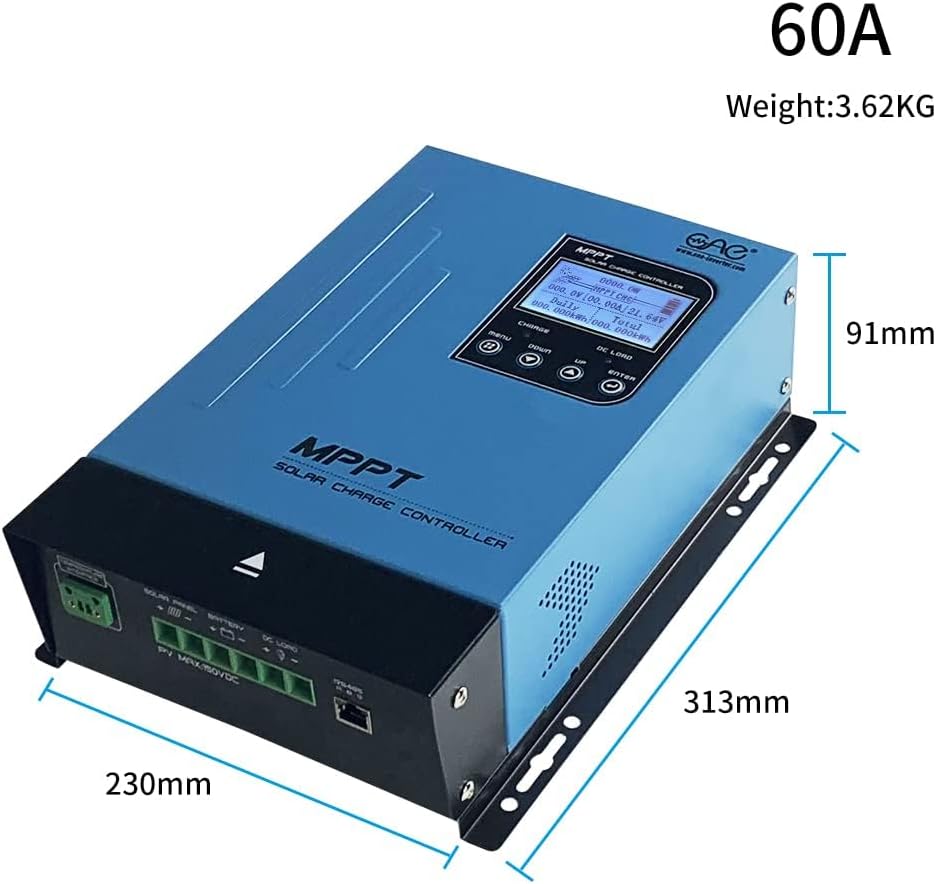

Dimension
230*91*313 mm 230*91*313 mm

Auto 12/24/36/48V battery system. Support 4 charging options: Sealed, Gel, Flooded and User-defined. Compatible with sealed, gel, flooded, and lithium batteries
High Efficiency : Creative maximum power point tracking technology can significantly increase theenergy utilization rate of the solar system and can reach transfer efficiency of 97%. Quickly scan the entire l-V curve; Track the maximum power point within severalseconds.
LCD Display—clear to see operating data and working condition, Real-time energy statistics function with Multiple load control modes,Chinese and English, multi-function LCD screen and operation menu. Display the daily power generation curve and current curve. Display fault records, to facilitate customer troubleshooting in a timely manner.
Support 4 charging options: Sealed, Gel, Flooded and User-defined.Perfect protection function.
RS485 communication: Capable of Wi-Fi remote monitoring (Additional purchase required) – Realize real-time wireless monitoring function of solar controller by APP, Simple and convenient to set, One-key restore the factory settings. Suitable for Andriod & IOS system.
