CAMPLUX Tankless Electric Water Heater 18kW, On Demand Hot Water Heater Electric with Digital Display 240V for Whole House Shower, Black

Product Description

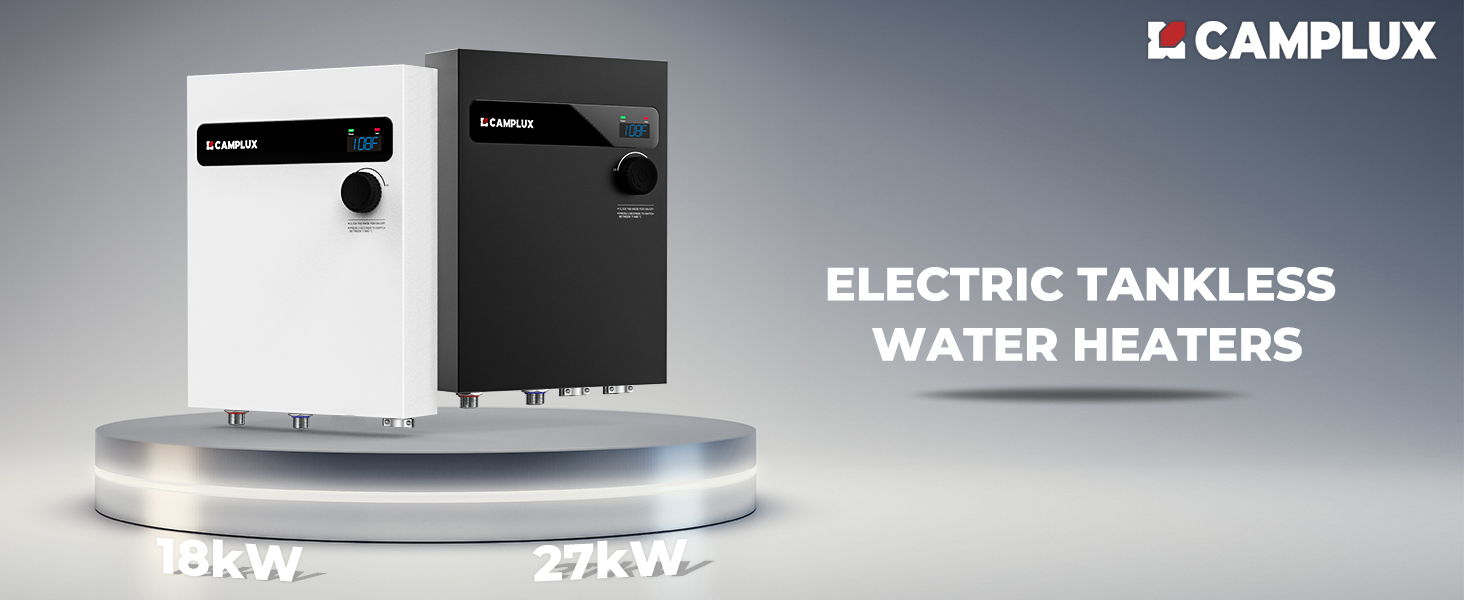

CAMPLUX Instant Hot Water Heaters for Whole House

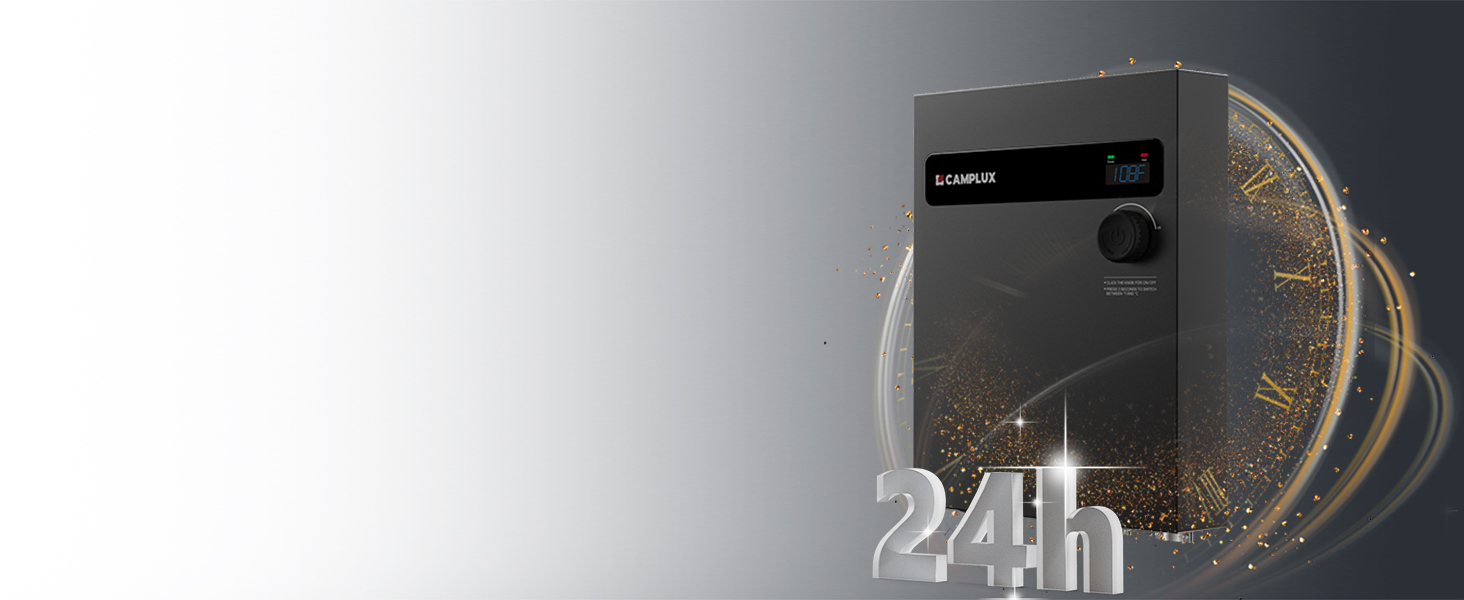

Endless Hot Water

With an on-demand design, Camplux tankless water heater heats water as needed for 24h. Its consistent performance is ideal for providing instant hot water for cabinets, bathrooms, and other spaces

Hot Water in 3 Seconds

CAMPLUX TEW Series instant water heaters for a shower. Save 50% more time than the traditional water tank. Point-of-use installation and on-demand heating cuts dawn on waiting for far-hot water

Self-modulating Technology

With advanced self-modulating technology, only use the amount of energy needed to heat water when you need it. Saving up to 60% on your electric bill

Energy Efficient

18kW tankless water heater Heating efficiency of up to 99.8% in fast heating, high scale resistance, and leak-proof. This electric tankless water heater will save 60% on maintenance costs for you

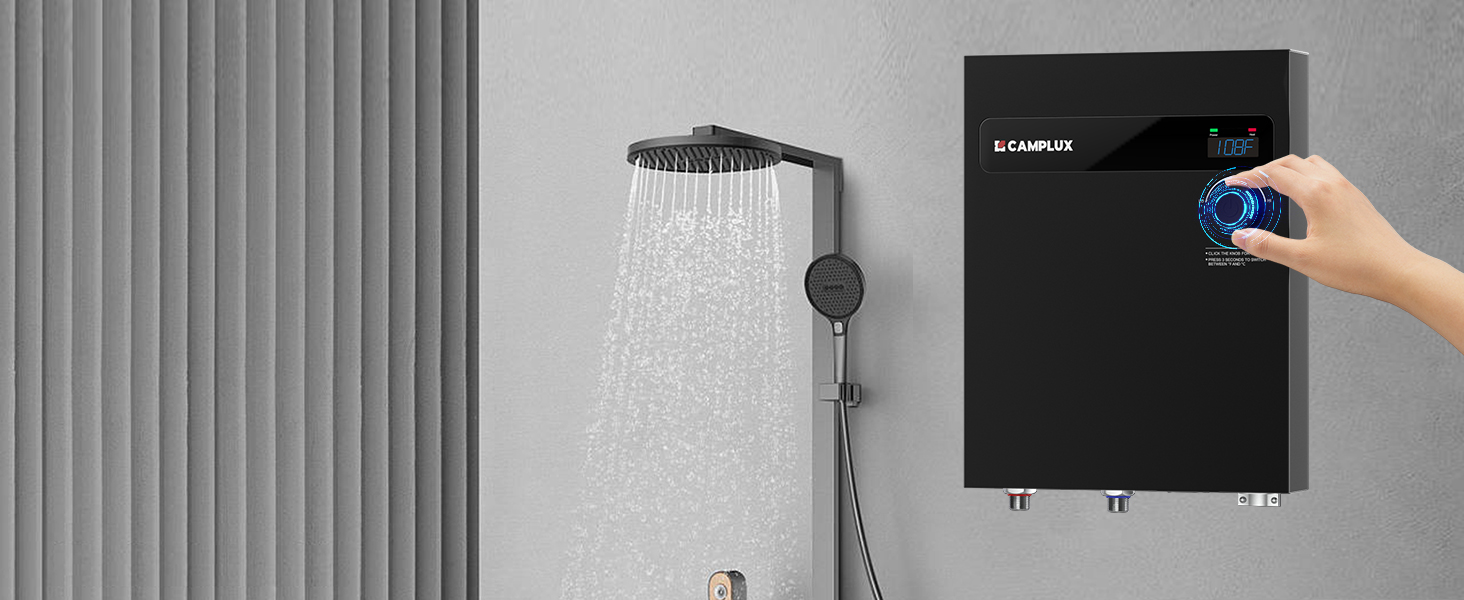

Easy to Adjust Between 80℉ & 140℉

360° rotation without reset of the knob to regulate the temperature for convenient operation

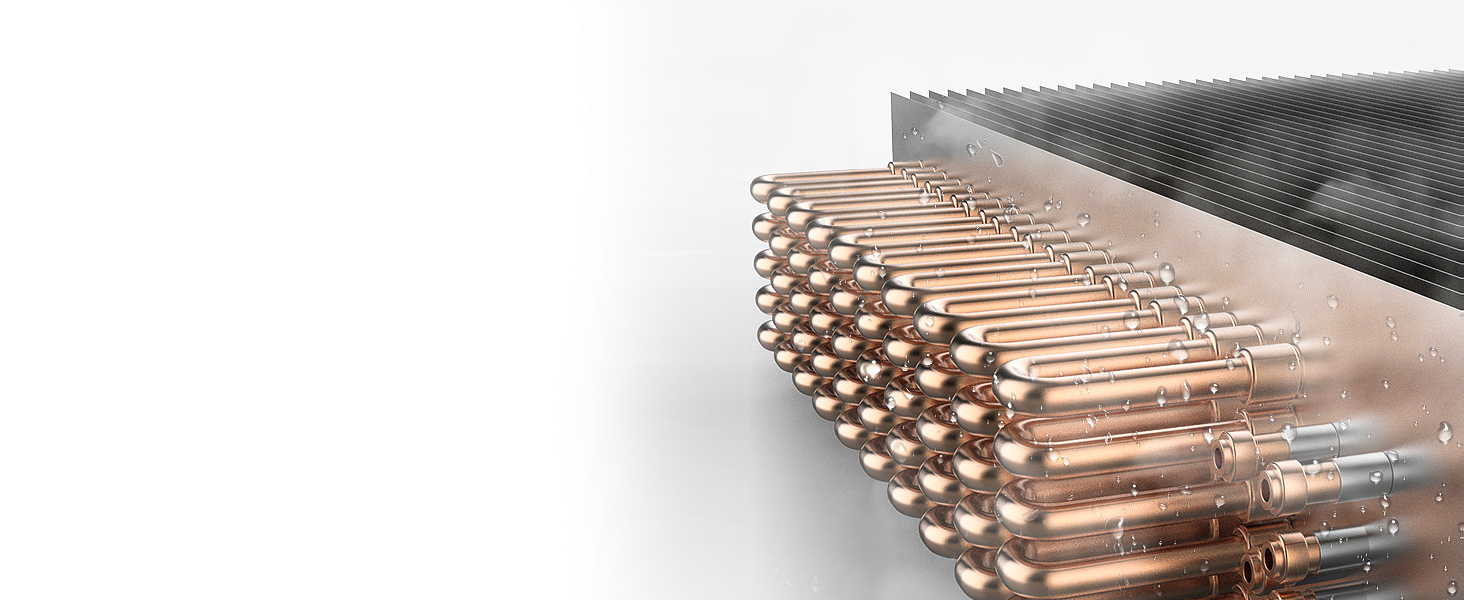

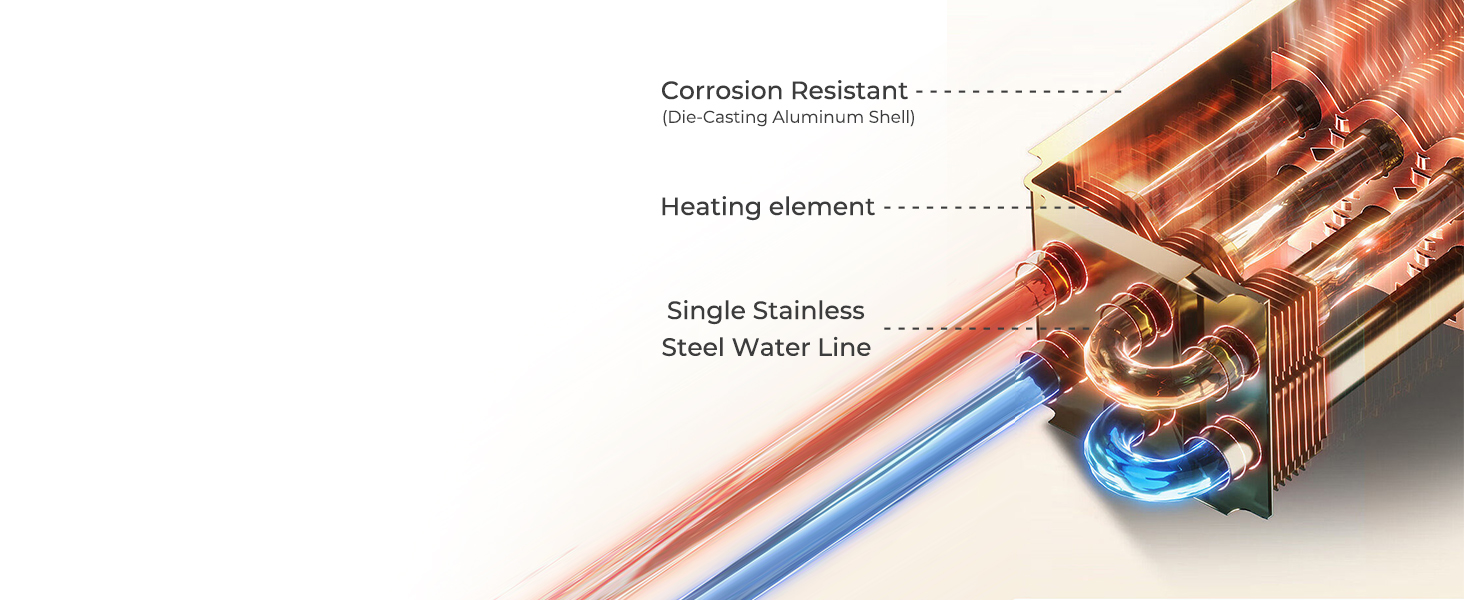

Durable Heating Elements

The separation of the heating element from the water tube path means reduced maintenance cost

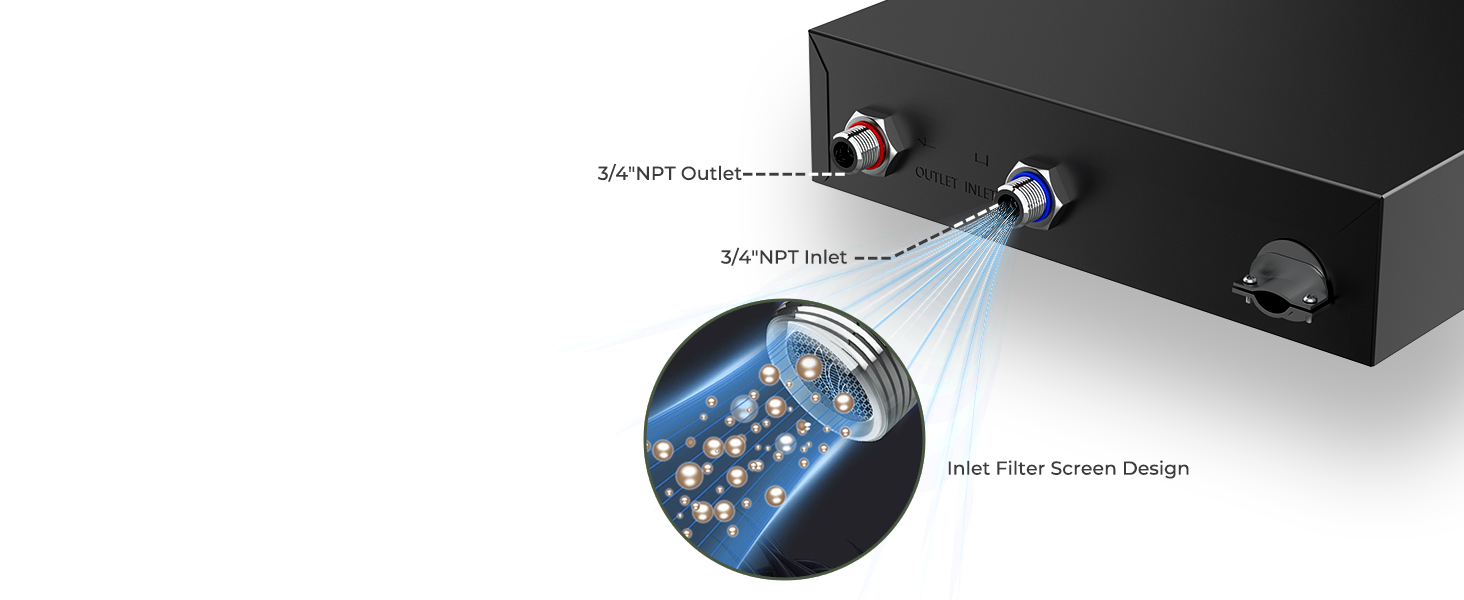

Water Connection 3/4″ NPT

The inlet filter can filter out particulate matter and protect water quality and friendly use

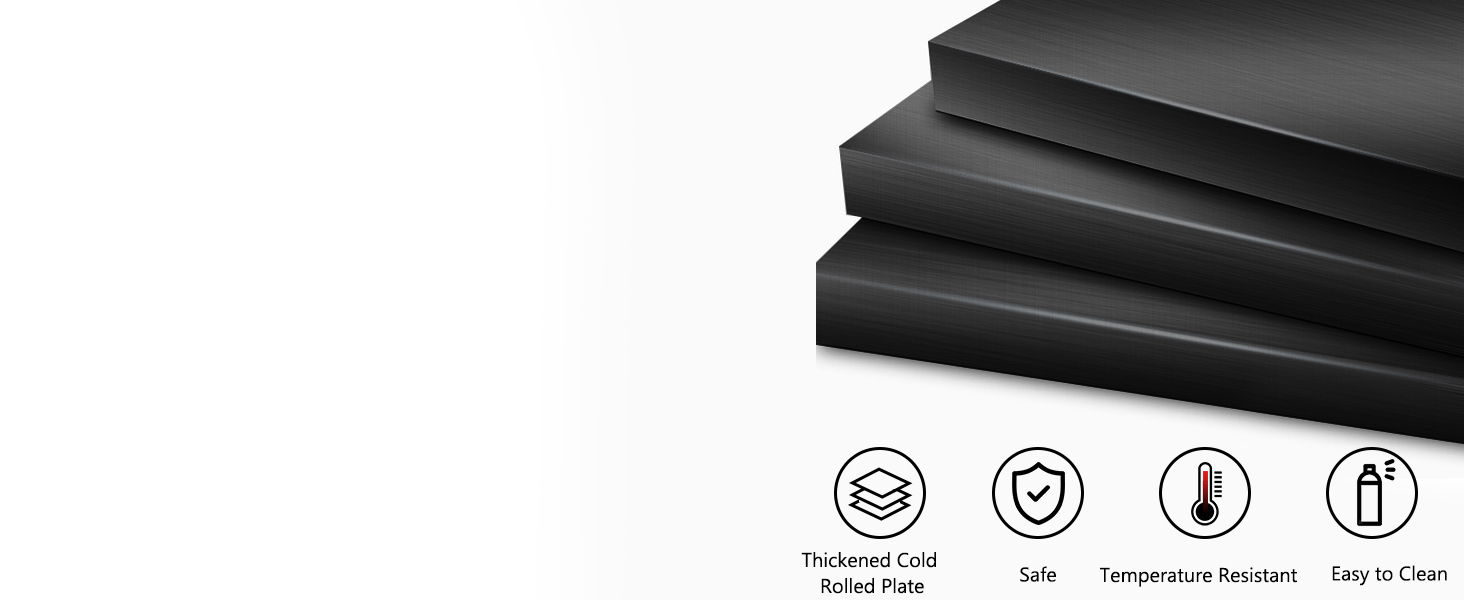

Metal Shell

Metal material is not easily damaged, ensuring the safe use of the product

1 Simple Digital Control

2 Maintenance Free

3 Inlet Filter Design

4 Strong and Durable

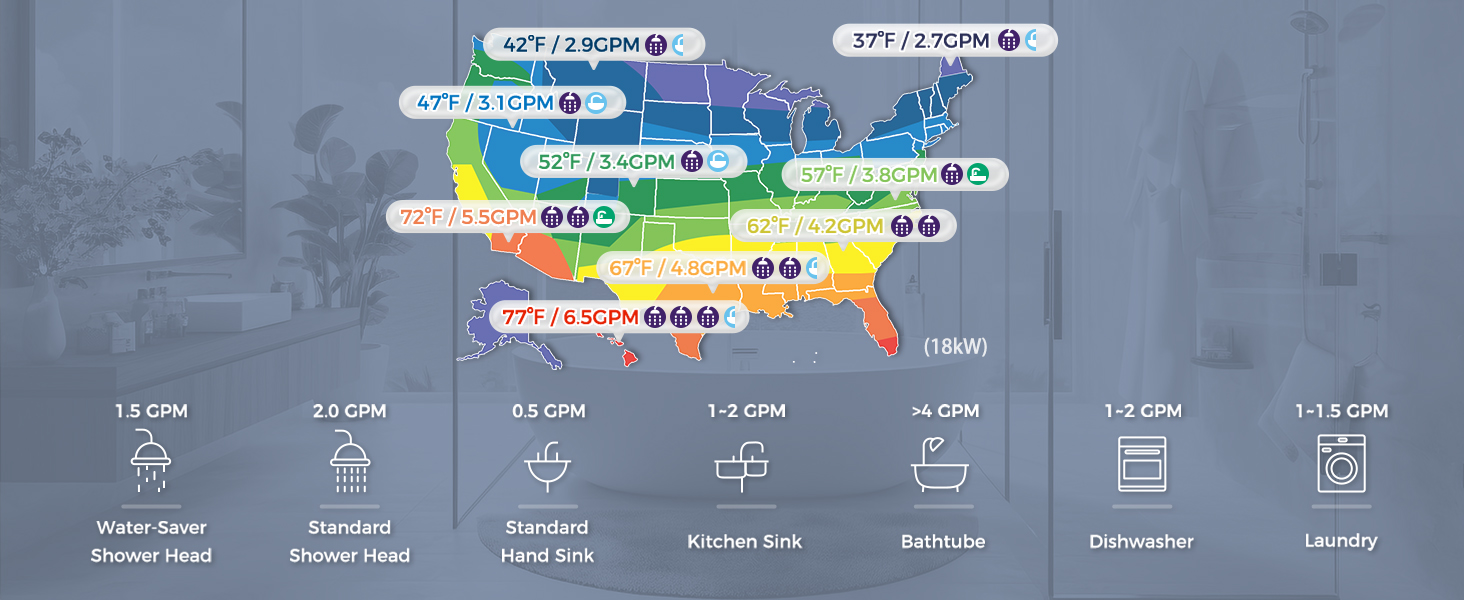

Identify Your Local Ground Water Temperature Using Below Map

Quick Wiring Guide for Camplux TEW Series Water Heaters Step 1 Turn off the Power

To avoid a short circuit and damage to the circuit board, ensure all strands are secured inside the terminal block. Before installing the water heater, make sure to turn off all power to the product directly at the fuse or breaker box before installing, repairing, or disassembling this water heater.

Step 2 2 x Double-pole 40AMP Breakers & 3 x Double-pole 40AMP Breakers

18kW needs two circuit breakers.

27kW needs three circuit breakers.

Confirm that your breaker panel can meet the required specifications for your unit. Connect each group of power wires to a circuit breaker in pairs (shown on the left).

Make sure that each circuit breaker is connected to a black wire and a red wire, two different colored wires make up the L1, L2 set of wiring. And also need A separate ground conductor is required.

Step 3 Double-check the Electrical Connections

Finally, always double-check that the electrical connections to make sure they are correct and that all wire connections are tight and secure before proceeding with product operation.

Can this water heater be use for the whole house shower?

Yes, it is expected to meet 2 points of use throughout the whole house.

What are my considerations when installing it?

Use the supplied drilling sample to determine the location of the mounting holes. When drilling holes in the wall, be sure to avoid buried electrical wires, water pipes, or gas pipes in the wall.

What amp breakers are required for 18kW and 27kW Electric tankless water heater?

The units of 18kW requires a 2x 40 AMP breaker and 2 x 8 AWG gauge wire. And about 27kW requires a 3x 40 AMP breaker and 3 x 8 AWG gauge wire.

How do I maintain my equipment and keep it clean?

If you have a lot of sediment in your water, it is recommended that the unit be flushed and descaled at least once a year at a minimum, removing the heating elements and cleaning them prior to flushing.

What should I do if the water leakage at the inlet and outlet connector?

We usually suggest you can check whether the connector is not installed in place or not, and then tighten the connector. And another problem is you need to replace the seal.

Comparison

Add to Cart

Add to Cart

Add to Cart

Add to Cart

Add to Cart

Customer Reviews

4.2 out of 5 stars 100

4.2 out of 5 stars 100

4.2 out of 5 stars 100

4.2 out of 5 stars 100

4.2 out of 5 stars 100

4.2 out of 5 stars 100

4.2 out of 5 stars 674

Price

$259.99$259.99

$319.99$319.99

$299.99$299.99

$181.99$181.99

$179.99$179.99

$169.99$169.99

$129.99$129.99

Capacity

18kW

27kW

24kW

14kW

11kW

8kW

4.5kW

Color Optoins

Black

White

White

White

White

White

White

Temp. Rise Range

80°F – 140°F

80°F – 140°F

80°F – 140°F

86°F – 131°F

86°F – 131°F

85°F – 131°F

86°F – 131°F

Water connections

3/4″ NPT

3/4″ NPT

3/4″ NPT

1/2″ NPT

1/2″ NPT

1/2″ NPT

1/2″ NPT

Electrical Requirements

76A / 240V

114A / 240V

114A / 240V

58.3A / 240V

45.8A / 240V

33.3A / 240V

37.5A /120V

Dimensions(W×H×D)

17.12″ x 13.12″ x 3.12″

17.12″ x 13.12″ x 3.12″

17.12″ x 13.12″ x 3.12″

9.76″ x 13.9″ x 2.56″

9.72″ x 13.78″ x 3.15″

12.2″ x 8.58″ x 2.68″

10.95” x 7.4” x2.52”

Weight

19lbs

20lbs

20lbs

13.67lbs

11lbs

9.9lbs

4.49 lbs

Wire Type

Hardwire

Hardwire

Hardwire

Hardwire

Hardwire

Hardwire

Hardwire

Endless Hot Water- With a stable heating system, the 18kW tankless hot water heater supplies instant and endless hot water of 80℉ to 140℉ in 3 seconds, no waiting for preheating, and a stable temperature fluctuation during shower time. It is even a perfect booster unit to supplement a distant water heater
Space-saving Design- The wall-mounted design looks stylish and compact, greatly saving floor space. Convenient for any space, e.g. cabinets, bathrooms, garages, basements, and other tight spaces. Heats water only when needed, saving up to 60% on water heating costs. Dimensions 17.12″ x 13.12″ x 3.12″
Fast Heating & Save Money- The Camplux 18kW endless hot water heater is self-modulating, and 99.98% efficient, providing fast heat-up and consistent, steady temperature output. Allows you to set and maintain the desired temperature in 1°F increments from 80°F to 140°F. Separation of the heating element from the plumbing keeps your maintenance costs low
Safety Protection & Friendly Use- The home tankless hot water heater has a good temperature system to provide you with stable water temperature output with overheating protection, anti-dry heating protection, and water-electricity separation. Protect the safety of you and your family by following the ETL certified standards
Easy Installation- The whole house tankless water heater without a tank, can be installed on the wall in a central home location. Storage more space in your home. 360° rotation without reset of the knob to regulate the temperature for convenient operation
Durable & No Leaking- Come with alloy metal housing & water ports and durable copper immersion heating elements. The on-demand hot water heater can effectively prevent the freezing and cracking of the water pipe in the water heater so that the water heater can be used for a longer time
Important Tips- Ensure the minimum water flow for activation just need 0.66 GPM; Output water temperature is between 80℉ & 140℉; Wire gauge 2 x 8AWG; Unit size 17.12″ x 13.12″ x 3.12″; Water connection 3/4″ NPT
Tech Support- Camplux offers 2-year parts, 6-year leak-free after-sales service, and unlimited technical support
